GEEKOM AE7
Power Beyond Imagination
AMD Ryzen™
R9-7940HS
Dual-channel DDR5
5600MT/s SODIMM
up to 64GB
PCIE Gen 4*4 SSD
up to 2TB
AMD Ryzen™
780M Graphics
Free Up Space
Only 0.47L
112.4 x 112.4 x 37 mm
Wi-Fi
6E
Bluetooth®
v5.2

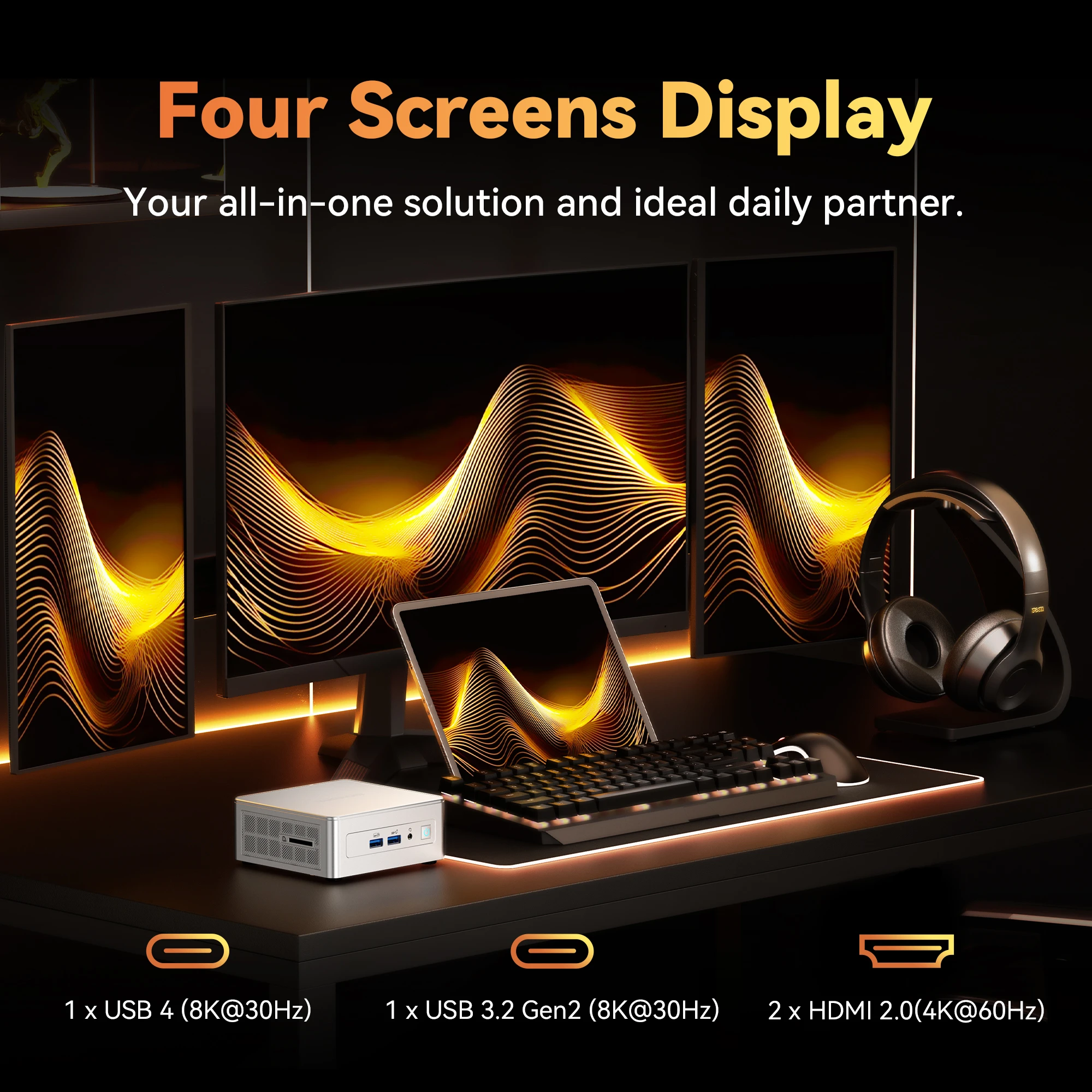

Supports
4
Displays
& Up To 8K
New self-developed
IceBlast 1.5 Cooling
System
Experience Unrivaled Performance And Seamless Multitasking
From intensive gaming to demanding creative tasks, the GEEKOM Mini AE7 Mini PC delivers exceptional speed and responsiveness, allowing you to push the boundaries of what's possible.
Cores
Threads
L3 Cache
Max. Boost Clock
Cinebench R23 Scores
AMD
R9-7940HS
Intel Core
i9-12900H
AMD
R9-6900HX
performance
Five core qualities of the AI Mini PC:
· Run Big Ideas, Effortlessly
· Unleash Processing Power
· Master Natural Language
· Unbreakable Security
· Unwavering Privacy
Elevate Your Visual Experience
The GEEKOM AE7 boasts the AMD Radeon™ 780M graphics card, built for smooth, high-fidelity experiences. Whether you're gaming, editing, or streaming, expect crisp visuals and exceptional performance. Immerse yourself in vivid detail and lifelike graphics.
RDNA3
2.7 GHz
RYZEN AI
Gaming test based on AMD Radeon™ 780M Graphics
Forza Horizon
60-75 FPS
Genshin Impact
50-60 FPS
League of Legends
150-240 FPS
NARAKA: BLADEPOINT
50-60 FPS
Microsoft Flight Simulator
30-40 FPS
The Witcher 3
45-55 FPS
Fast Memory Speeds. Dual-channel DDR5.
Flexible storage options and lightning-fast memory support the next-gen DDR5 memory. With higher frequency DDR5 5600MT/s, increased capacity, and greater power efficiency, the GEEKOM AE7 Mini PC delivers outstanding performance for daily computing tasks.
2 x 16GB RAM
Dual-channel DDR5 5600MT/s, up to 64GB.
2TB SSD
M.2 2280 PCIe Gen 4*4 SSD, up to 2TB.
Top-Speed Networking
Equipped with 2.5Gbps Ethernet, WiFi 6E, and Bluetooth 5.2, the GEEKOM AE7 Mini PC offers ultra-fast wireless and data transfer speeds. It connects seamlessly to a wide range of devices with enhanced efficiency, ensuring your wireless internet access is faster and more secure than ever before.
Bluetooth 5.2
WiFi 6E
LAN 2.5Gbps

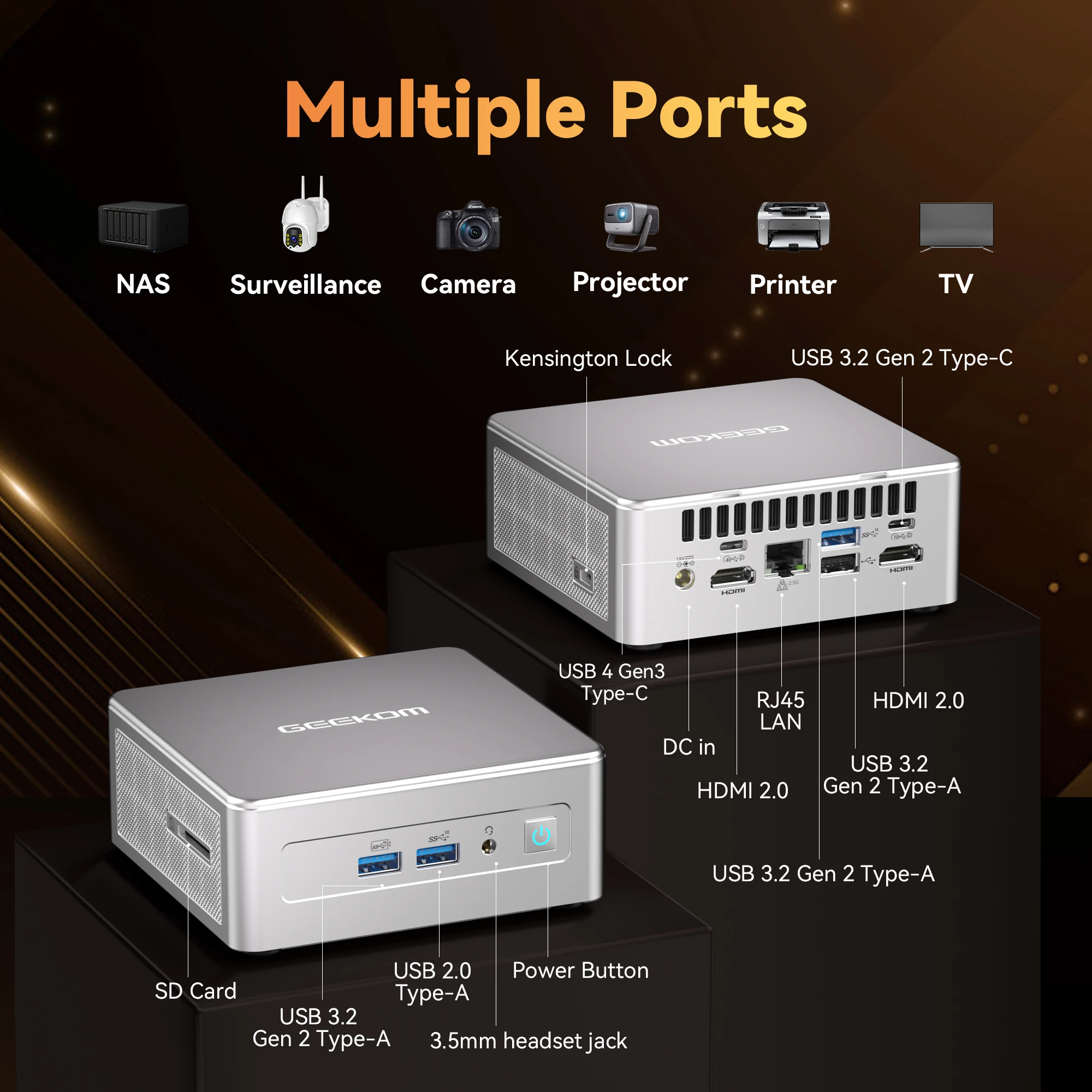

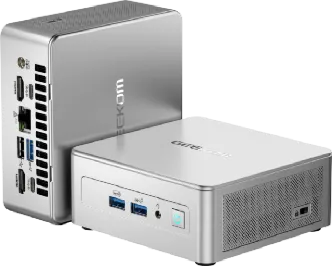

Desktop-Grade Connectivity

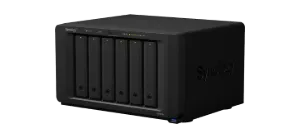

NAS

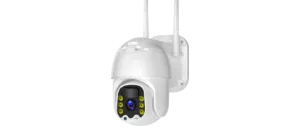

Surveillance

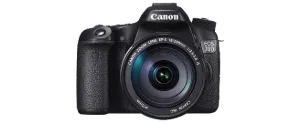

Camera

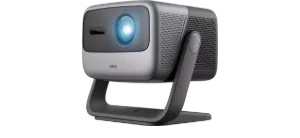

Projector

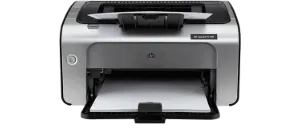

Printer

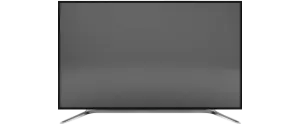

TV
Kensington Lock
PowerButton
3.5mm front stereo
headset jack
USB 3.2 Gen 2 Type-A
USB 3.2 Gen 2 Type-A
USB 3.2 Gen 2 Type-C
USB 3.2 Gen 2 Type-A
USB 4 Gen3 Type-C
DC in
HDMI 2.0
RJ45
USB 2.0 Type-A
HDMI 2.0
SD card reader
Comprehensive USB 4.0 port
Integrated with a full-function USB 4.0 port, the GEEKOM AE7 provides you with a more versatile and efficient computing experience.
USB4
40Gbps/s
Power delivery
External devices

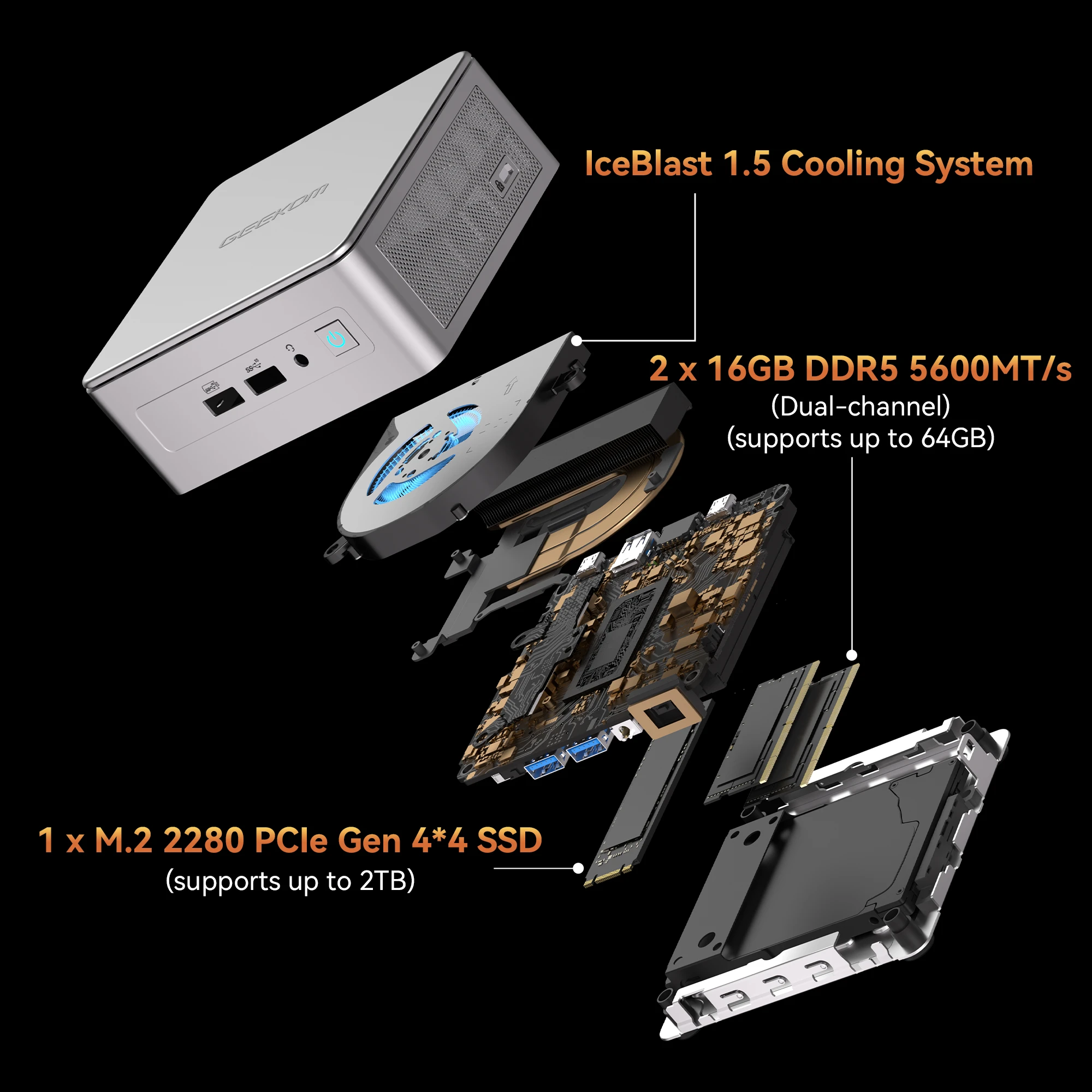

IceBlast 1.5 Cooling System
GEEKOM's self-developed cooling system "IceBlast 1.5" brings a brand-new experience with low noise and high airflow to dissipate heat faster, maintain high performance and say goodbye to hot panels.
Dual-conduit heat pipe
More fan blades
High-conductivity
thermal materials

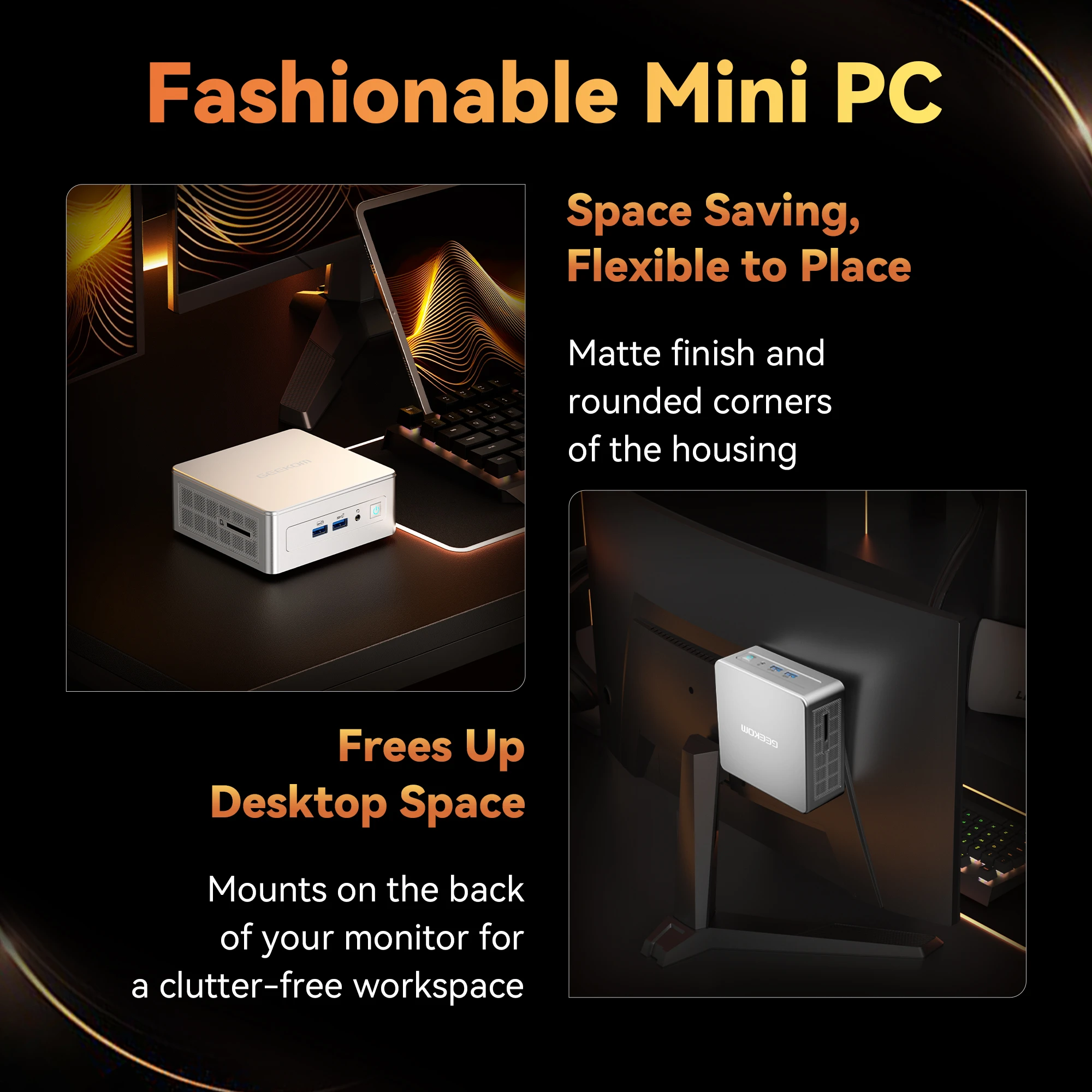

VESA-Compatible & Space-Saving
Experience ultimate portability and durability with this lightweight metal-cased GEEKOM AE7 Mini PC.
Aluminum housed
112.4* 112.4* 37 mm
Compact
0.47 L
Lightweight
450 g
Outstanding Performance for Work and Play





Strict Quality Control & Comprehensive Reliability Testing
Vibration Test
Drop Test
Low Temperature Test
Humidity Test
Altitude Test
High Temperature Test
Pre-installed with Windows 11 Pro system
This Mini PC comes pre-installed with a genuine Windows 11 Pro operating system. As Microsoft's latest operating system, it offers a new user interface design, enhanced gaming experience, and improved security features. You can also choose to install other operating systems like Linux according to your specific needs.
Specifications
| Form Factor | Chassis: 117 × 112 × 49.2 mm |
| CPU | AMD Ryzen™ R9-7940HS (4.0 GHz, 8 cores, 16 threads, 16MB Cache, TDP: 54W) |
| Graphics | AMD Radeon™ 780M Graphics |
| Memory | Dual channel DDR5 5600MT/s SODIMM, up to 64GB |
| Storage | 1 × SSD PCIE GEN4×4 up to 2TB |
| I/O Ports | 1 × rear USB 3.2 Gen 2 Type-A 1 × rear USB 2.0 Type-A 1 × front USB 3.2 Gen 2 Type-A support Power Delivery 1 × front USB 3.2 Gen 2 Type-A 1 × USB 3.2 Gen 2 Type-C support Power Delivery (back panel) 1 × USB 4 Gen3 Type-C support Power Delivery (back panel) 1 × 3.5mm front stereo headset jack 1 × RJ45 (back panel) RTL8125BG-CG 2 × HDMI 2.0 (back panel) 1 × DC in (back panel) 1 × Power Button 1 × Kensington Lock 1 × SD Card |
| Internal Connector | 1 × M.2 key-M slot for PCIe x4 Gen 4 1 × M.2 2230 for WIFI PCIe 1 × Fan |
| LED | POWER LED (Power On: White) |
| Ethernet | Intel 10/100/1000/2500 Mbps RJ45 RTL8125BG-CG |
| Wireless LAN | M.2 Wi-Fi 6E AW-XB591 |
| Kensington Lock | Yes |
| DTPM2.0 | FTPM 2.0 |
| Battery | RTC coin battery |
| Adapter | 19V 6.32A |
| PCBA Dimension | 105.75 × 102.9 × 1.6 mm |
| Certification | CE, FCC, CB, CCC, RoHS |
| Operating system | Microsoft Windows 11 (64-bit) |
| Accessory | VESA Mount |
Related Products
Built for long-term performance >>
Quality you can rely on, year after year.
✨The Best £600 Mini PC in 2026.
- AMD Ryzen™ 5 7530U (beats 7430U) – The 7530U uses the newer Zen 3 architecture, which is more energy efficient and stable than the 7430U. It is less prone to throttling under high load, generates less heat, and provides a smoother experience for light creative work.
- Top-tier in its price range – Offering a rare all-metal frame and excellent build quality at this price point, rejecting any cheap plastic feel.
- Low power consumption, advanced heat dissipation technology – the A5 Pro’s performance remains stable across a range of ambient temperatures, with less than a 2% variation in processing speed.
- Ultra-compact and elegant design – Only 0.47L in volume, aluminum casing, and VESA mount to blend into any space
- Abundant Interfaces – Equipped with a 2.5GbE Ethernet port, dual HDMI ports, dual USB-C ports (with DisplayPort output), six USB ports, an SD card reader, and a VESA mounting bracket, sufficient for most desktop setups.
- Eco-Friendly & Ultra-Reliable – Uses sustainable materials and low-power tech. Passed 339 tests for 5+ years of stable use, backed by a 3-year warranty & dedicated support — ideal for business and personal needs.
✨The most cost-effective Intel AI PC with 8 USB ports and dual LAN.
- Intel® Core™ Ultra 9 with Integrated AI – Hybrid power with NPU for productivity and intelligent tasks
- Intel® Arc™ Graphics with Ray Tracing and XeSS – Fluid, realistic visuals without a dedicated GPU
- High Speed DDR5 SODIMM, up to 64 GB | PCIe 4.0 SSD up to 2 TB – Ultra-fast memory and expandable storage
- Up to 4× 4K or 1× 8K Displays – HDMI 2.0, Mini DP 1.4, and USB4 connections for maximum visual productivity
- Enterprise-Grade Connectivity – Wi-Fi 7, Bluetooth 5.4, and dual 2.5 Gbps Ethernet for stable, fast, and secure networking
- Comprehensive and Versatile Ports – 8× USB, SD card reader, 3.5 mm audio jack, Kensington lock slot, and more
- IceBlast 2.0 Cooling – Quiet and efficient, with dual copper heat pipes and up to 52% higher thermal dissipation capacity
- Compact and Robust Metal Chassis (0.78 L) – Withstands up to 200 kg of pressure, featuring a sleek design and included VESA mount
- Guaranteed Reliability – Over 339 tests passed to ensure at least 5 years of stable performance
- Pre-installed Windows 11 Pro – Ready to use with security, Copilot AI, and compatibility with Linux and other systems
🔥Quiet, Reliable & Easy to Use – The Best Mini PC for Home & Office
- Quad-4K Multi-Tasking Engine — Driven by high-efficiency AMD Ryzen™ processors, the A5 transforms your desk into a productivity command centre. Seamlessly drive up to four 4K displays simultaneously via dual HDMI and dual USB-C ports—perfect for coding, trading, or complex spreadsheet analysis.
- Unrestricted Upgradability & Triple Storage — Never settle for soldered limitations. The A5 features dual-channel DDR4 memory (expandable to 64GB) and a rare triple-drive storage architecture. Combine a PCIe NVMe SSD, an M.2 SATA slot, and a 2.5″ HDD bay to scale your massive data locally up to 6TB.
- Certified Enterprise Reliability— Built for the long haul. Rigorously validated through 339 quality control tests, the A5 is engineered to deliver 5+ years of stable, crash-free operation. Pre-installed with Windows 11 Pro (Linux compatible), multi-certified for global safety standards (FCC, CE, RoHS, etc.), and backed by our premium 3-Year Warranty, it provides ultimate peace of mind for startups and home offices.
- Comprehensive I/O Ecosystem — Built to be the versatile core of your modern workspace. A dedicated 2.5Gbps Ethernet port ensures zero-latency data transfers for NAS or Home Labs, while Wi‑Fi 6, Bluetooth 5.2, 6 USB ports, and a native SD Card reader keep all your essential peripherals connected.
- Durable & eco-friendly — 200kg pressure-resistant metal chassis, low-power design saves electricity.
🔔Buy More, Save More🔔
- Buy 2-4 Mini PCs and save 6% with code: B2D6
- Buy 5-9 Mini PCs and save 8% with code: B5D8
- Buy 10+ Mini PCs and save 11% with code: B10D11
Built for long-term performance >>
Quality you can rely on, year after year.
- Elite Intel Core Ultra AI Power: Command next-gen performance with the 16-Core Intel Core Ultra 9 185H (45W TDP). Harness dedicated AI acceleration and Intel Arc graphics to crush demanding workloads at up to 5.1GHz in a compact 0.9L footprint.
- DDR5 Performance & Storage: Ditch the “soldered RAM trap.” Expand up to 64GB of high-speed DDR5 RAM and massive storage capacities via three dedicated slots: M.2 NVMe Gen4 (2280), M.2 SATA (2242).
- Pro-Level 8K Visuals & Dual USB4: Drive four 4K monitors or stunning 8K visuals via dual 40Gbps USB4 ports and dual HDMI 2.0. Perfect for AI model training, complex coding, and lightning-fast data transfers for power users.
- Silent Cooling for 45W TDP: Eliminate thermal throttling. Our advanced thermal system is engineered to handle the high-performance Core Ultra 9, keeping the system ice-cold and whisper-quiet even during 24/7 heavy use or industrial applications.
- Extreme Networking with Wi-Fi 7: Future-proof your desk with cutting-edge Wi-Fi 7, Bluetooth® 5.4 and Dual 2.5G Ethernet ports. Experience the most stable, ultra-low latency connection available for zero-lag remote desktop and server workflows.
- Pro Readiness & Industrial Versatility: Secure your data with dTPM 2.0 and Kensington Lock support. This pro-grade build includes Windows 11 Pro, VESA mount compatibility, and industrial-ready RS232/RS485 headers for specialized enterprise environments.
Built for long-term performance >>
Quality you can rely on, year after year.
✨The Best Mini PC to Choose in 2026.
- 0.84L Palm-Sized – Fits easily into a drawer.
- Powered by Ryzen 9 flagship chip – Desktop-level performance, the hidden powerhouse for professionals.
- 16 GB + 1 TB – The Sweet Spot for Performance and Value.
- Abundant ports, high-speed internet – Say goodbye to a bunch of adapters, keep your desktop super tidy.
- 200kg Pressure-Resistant Aluminium Alloy Chassis – Resilient to everyday bumps and knocks, lasts for years.
- Dual Copper Pipe Cooling for Rock-Solid Performance – No worries about system failure even during late-night work sessions.
- Pre-installed Win11 Pro – Supports multiple operating systems for easy switching.
- 3-Year Warranty + 30-Day Return Policy – Worry-free purchase.
Built for long-term performance >>
Quality you can rely on, year after year.
✨Desktop-grade power, mini-sized perfection
- Powerful computing power: Intel Core Ultra 9 processor with built-in Intel AI Boost 1.4 GHz NPU, support 500+ AI models in 20+ categories
- Rich interfaces: 8 USB ports(including 2 × USB4 Ports), SD card reader, and Kensington Lock, worry-free expansion
- High-speed connection: Dual 2.5G Ethernet ports, Intel® Bluetooth® 5.4 and Wi-Fi 7
- High-speed storage: Equipped with blazing-fast 32GB of DDR5 memory (upgradeable to 128 GB) and support for up to 6 TB of storage.
- Dual USB4 Ports (Rival OCuLink): Unlock next-generation connectivity. Dual USB4 ports offer Thunderbolt-speed data transfer (40Gbps), dual 8K display output, and support for external graphics cards, effectively replacing OCuLink ports.
- Advanced Silent Cooling Technology: Our proprietary cooling system features a full copper module, large heat pipes, and a high-speed, silent fan.
- AMD Ryzen™ 9 5900HX
- AMD Radeon™ Vega 8 Graphics
- Quad-4K displays support and 8K UHD support
- Up to 64 GB DDR4 RAM, 1TB M.2 SSD
- Integrated Wi-Fi 6E and Bluetooth 5.2
Built for long-term performance >>
Quality you can rely on, year after year.
Reddot Winner 2026 | Best Value Copilot+ PC | 80 TOPS AI | Dual USB4 | Wi-Fi 7 & Dual 2.5G LAN | 128GB Expandable RAM
- Flagship AI and AAA Gaming Performance: Powered by AMD Ryzen™ AI 9 HX 470 or HX 370 processors (up to 54W TDP), built on advanced Zen 5 and XDNA™ 2 architectures. Delivering up to 86 combined TOPS for seamless local AI deployment (Copilot+, local LLMs,and Radeon™ 890M graphics that rival entry-level discrete GPUs—powering smooth high-frame-rate 1080p AAA gaming and demanding 3D rendering workloads.
- Expandable 128GB DDR5 & Dual NVMe: Free yourself from the limitations of soldered memory. The A9 Max supports up to an exceptional 128GB of upgradeable DDR5 RAM, ideal for large AI datasets, intensive multitasking and professional applications. Expand storage up to 8TB with dual PCIe 4.0 SSD slots (2280 + 2230) for your project.
- Pro-Grade Connectivity Ecosystem: Designed for advanced workstation setups. Dual 40Gbps USB4 ports(eGPU ready)and dual HDMI 2.1 outputs, allow connection to up to four 4K displays simultaneously or a single 8K display. Features dual 2.5GbE LAN, Wi-Fi 7, Bluetooth 5.4, and a high-speed SD 4.0 card reader for demanding, high-bandwidth professional workflows.
- IceBlast 2.0 Cooling & All-Metal Frame: Sustain peak 54W performance without thermal throttling The proprietary IceBlast 2.0 system utilizes a massive copper module and dual heat pipes for whisper-quiet acoustics. Encased in a precision-crafted all-metal inner frame for superior heat dissipation and structural integrity.
- Enterprise-Grade Reliability: Ready for mission-critical deployment. Pre-installed with Windows 11 Pro (Linux compatible) and validated through 339 rigorous quality tests. Backed by our premium 3-Year Warranty, the A9 Max is engineered to deliver 5+ years of stable, 24/7 operation for power users and businesses alike.
✨The Thinnest Mini PC Ever.
- Sturdy Metal Frame: Can withstand up to 440 lbs (200 kg) of pressure, ultimate stability and long-lasting durability.
- Rich interfaces: 5 USB ports, SD card reader and Kensington Lock, and supports 3 displays expansion
- Validated 5-Year Reliability:Built for the long haul with 339+ rigorous stress tests. This industrial-grade validation ensures a dependable 5-year hardware lifecycle for demanding office, educational, and 24/7 media environments.
- Dual-copper heatpipes: Equipped with a dual copper heat pipe cooling system, ensures twice the heat dissipation efficiency.
- Ready-to-use: Pre-installed with Windows 11 Pro and compatible with multiple operating systems.
🔔Buy More, Save More🔔
- Buy 2-4 Mini PCs and save 6% with code: B2D6
- Buy 5-9 Mini PCs and save 8% with code: B5D8
- Buy 10+ Mini PCs and save 11% with code: B10D11
Built for long-term performance >>
Quality you can rely on, year after year.
✨Desktop-grade power, mini-sized perfection
- Powerful computing power: Intel Core Ultra 9 processor with built-in Intel AI Boost 1.4 GHz NPU, support 500+ AI models in 20+ categories
- Rich interfaces: 8 USB ports(including 2 × USB4 Ports), SD card reader, and Kensington Lock, worry-free expansion
- High-speed connection: Dual 2.5G Ethernet ports, Intel® Bluetooth® 5.4 and Wi-Fi 7
- High-speed storage: Equipped with blazing-fast 32GB of DDR5 memory (upgradeable to 128 GB) and support for up to 6 TB of storage.
- Dual USB4 Ports (Rival OCuLink): Unlock next-generation connectivity. Dual USB4 ports offer Thunderbolt-speed data transfer (40Gbps), dual 8K display output, and support for external graphics cards, effectively replacing OCuLink ports.
- Advanced Silent Cooling Technology: Our proprietary cooling system features a full copper module, large heat pipes, and a high-speed, silent fan.
The Ultimate AI Workstation | 120W Sustained | 126 Total TOPS
- Next-Gen AI Powerhouse (126 Total TOPS): Unleash elite-level machine learning and creative workflows with 50+ NPU TOPS and a total system output of 126 TOPS, driven by the flagship AMD Ryzen™ AI Max+ 395 (16C/32T) for unthrottled workstation performance.
- IceBlast 5.0 Thermal Mastery: Stay frost-bound with a precision-engineered dual-fan system and an ultra-slim, full-coverage vapor chamber, specifically designed to maintain a sustained 120W TDP without throttling—even under 100% load.
- Massive 330W Power Reserve: Equipped with a professional-grade 330W power supply, providing the massive electrical overhead required for rock-solid stability and simultaneous CPU, GPU, and NPU peak-frequency bursts.
- Ultra-Fast 128GB LPDDR5x & RAID Storage: Experience zero-bottleneck multitasking with up to 128GB of 8000MHz memory and dual M.2 PCIe Gen4x4 slots(up to 8TB) supporting RAID 0/1 for industrial-grade data transfer speeds.
- Quad-8K Professional Workspace: A world-first in its class—drive four 8K displays simultaneously via dual 40Gbps USB4 and dual HDMI 2.1 (FRL) ports for the ultimate high-resolution creative or trading setup.
- Industrial Build & Pro-Connectivity: A precision CNC-machined aluminium alloy chassis housing Wi-Fi 7, Bluetooth 5.4, dual 2.5G Ethernet, and integrated fingerprint security—combining rugged durability with elite networking.
Built for long-term performance >>
Quality you can rely on, year after year.
✨Your ideal £400 mini PC: minimalist design, exceptional performance, and no compromises.
- AMD Ryzen™ 5 7430U (15W) — Agile performance for office and professional use, with extremely low power consumption.
- Appearance – Exquisite all-aluminum chassis, simple and stylish, sturdy and durable, exuding a premium feel.
- Built-in SD Card Reader + Kensington Security Lock Slot— High-speed direct transfer of creative materials, plug and play; secure lock for shared office use, high-end security rarely seen at this price.
- 8K Immersive Visual – Dual HDMI 2.0 & dual USB 3.2 Gen 2 Type-C ports enable stunning quad-screen multi-display — supporting up to breathtaking 8K output. Built-in SD card reader for seamless file transfers, ideal for creators, analysts & remote workers (Win11 Pro).
- IceBlast 2.0 Dual Copper Pipe Cooling System – Remains quiet even under heavy loads; noise is almost imperceptible. 20W power consumption control results in less heat and more efficient cooling.

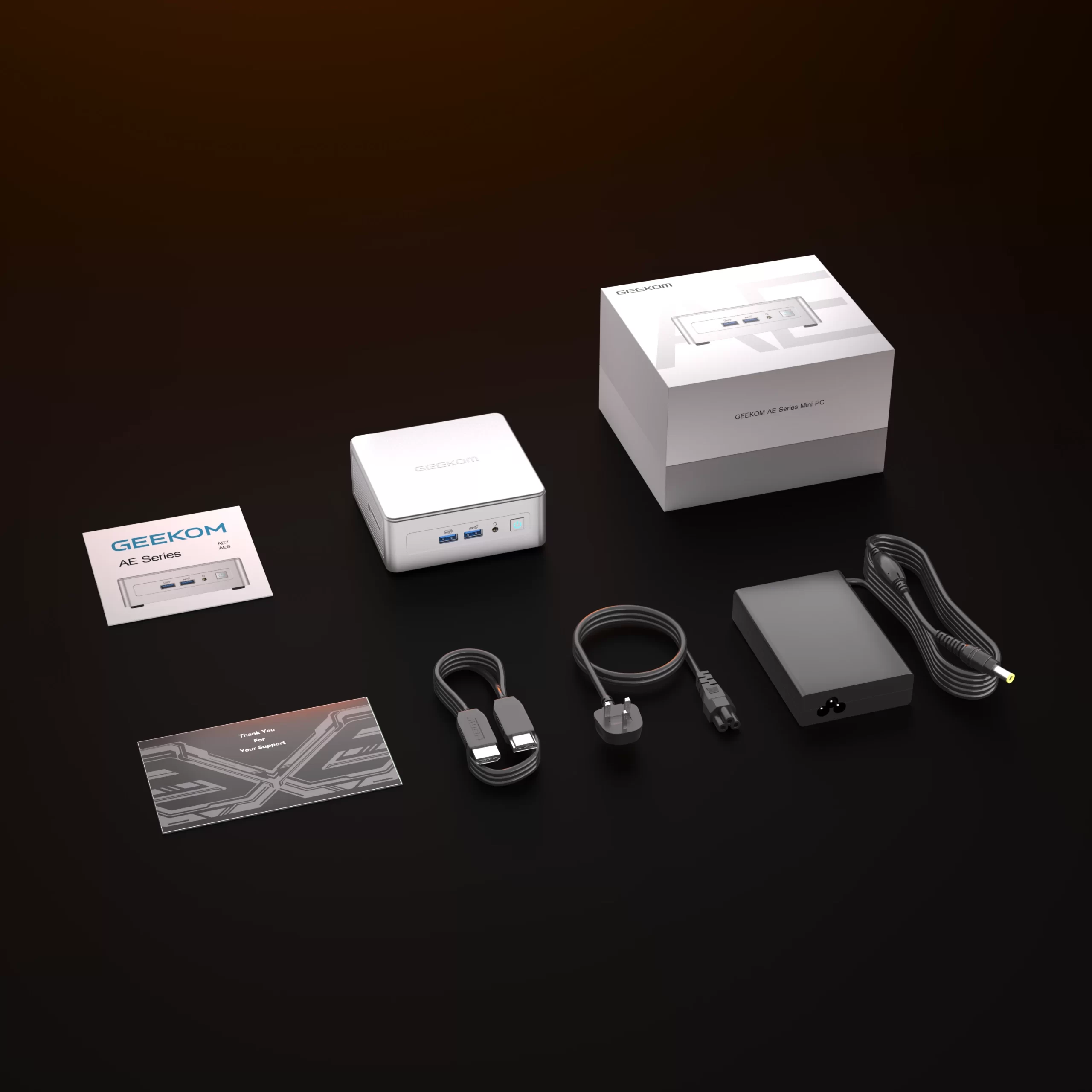

- Just plug & play, compatible with Linux systems— We’ve tested compatibility with 99% of home & office setups. Everything you need is in the box.
