GEEKOM 10-in-1 USB C Hub

£45.99

Support USB-C input, USB3.0 Output
Support HDMI Female, VGA Female, USB-C Female, USB 3.0 Female, Gigabit Ethernet, Stereo, SD Card, Micro DS Card, USB-C interface
Support HDMI resolution up to 3840X2160@30Hz
Support VGA resolution up to 1920x1080P@60Hz
Support VGA and HDMI simultaneously output
Support 10/100/1000Mbps bandwidth
Stereo port supports both microphone and headphone
Support to access memory
USB-C female charging port for Macbook or Google new Chromebook Pixel and other USB-C supported devices.
Multiple USB-C interfaces support plug and play, hot swap
Support Secure Digital v3.0 UHS-I (Reading speed max 70Mbps, Writing speed max 90Mbps)
Support MultiMediaCard (MMC) specification
Support Micro SD/SDHC/SDXC (up to 128 GB)USB-C female port supplies power up to 100W（20V5A）

Secure checkout with buyer protection

This USB-C docking station, with its multiple ports, allows you to connect a host PC to monitors or devices with HDMI, VGA and USB3.0 ports, and also allows your host PC to get access to fast network with its Gigabit Ethernet port. Besides, the SD/MMC and Micro SD card slot helps to access the external memory of the host PC and the USB-C female port can charge for the host computer.

1 Dimensions

Figure 1-1 Dimensions (Unit: mm [inch])

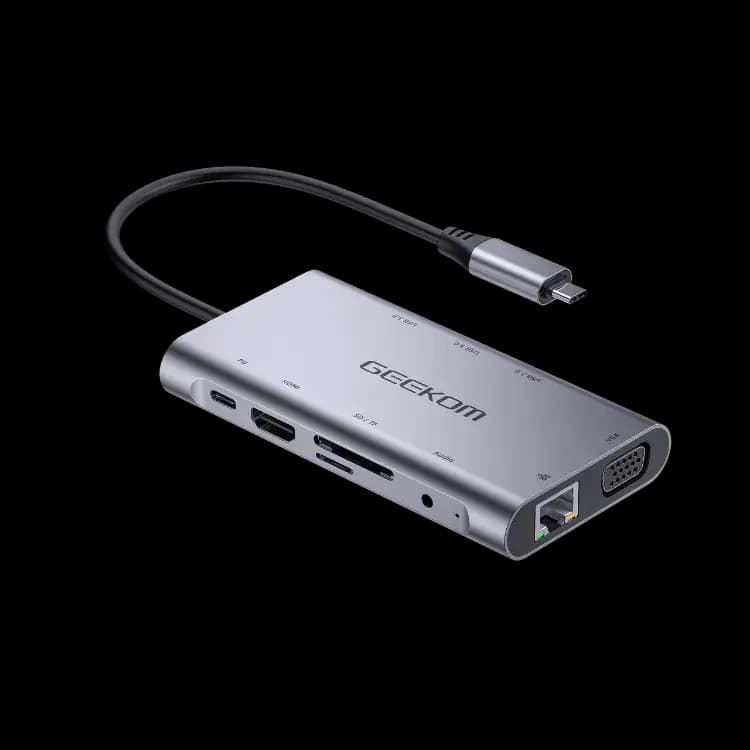

1.1 Structure

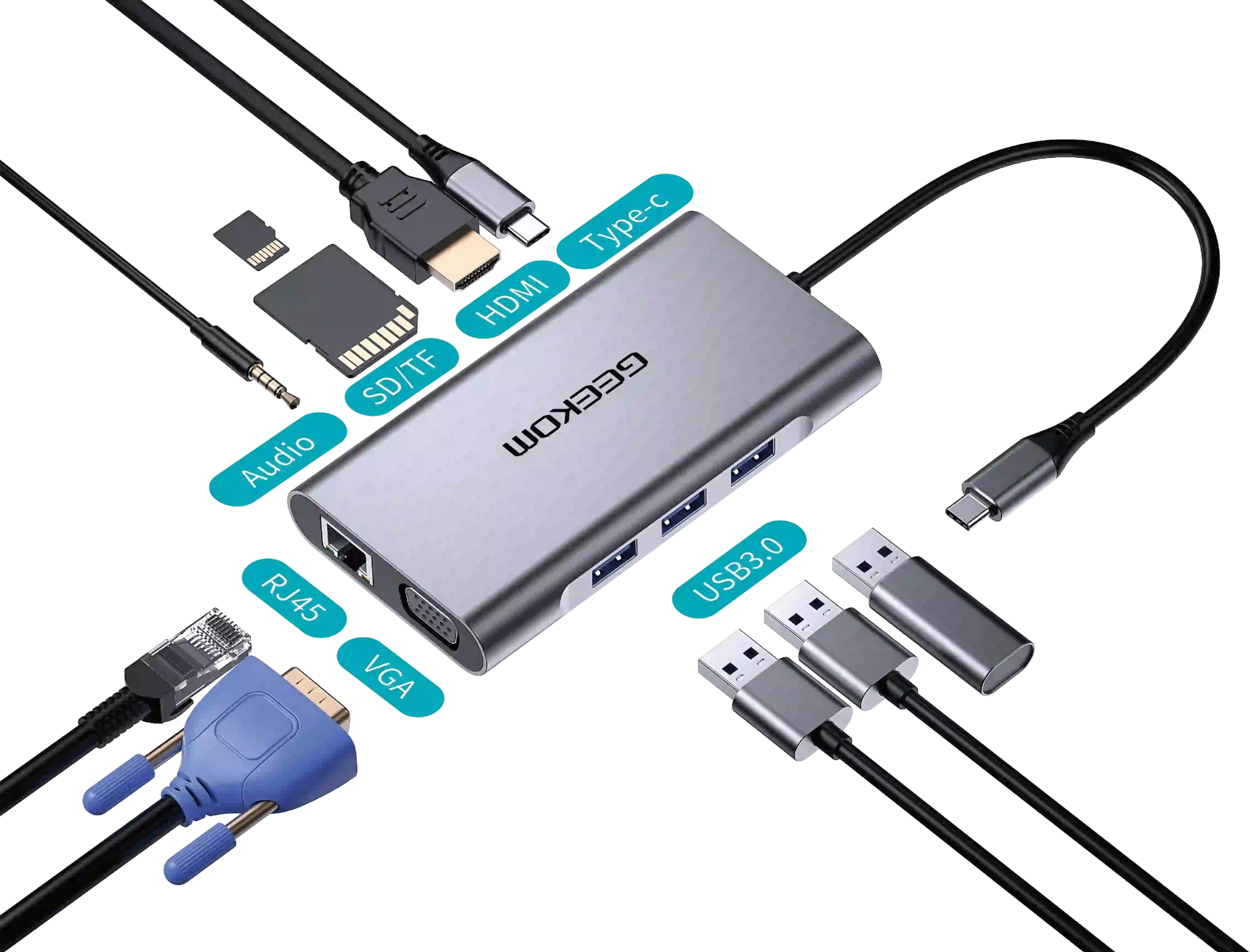

1.2 Port and Application scene Figure 1-2 Port and Application scene

Table 1-1 Description of port

No.	Input/Output Connector	Name	Description
1	Input	USB-C Male x1	The USB-C connected to laptops, tablets, mobile phones, game consoles and other devices
2	Output	HDMI Female x1	The resolution is up to 3840X2160@30Hz
3	Output	VGA Female x1	The resolution is up to 1920x1080P@60Hz
4	Output	USB 3.0 Female x3	Total output power: 15W (5V@1.5A) Power output of up to 7.5W(5V1.5A for one port alone or 2 ports for PD adapter charging)
5	Output	RJ45 X1	Support 10/100/1000Mbps bandwidth
6	Output	Audio x1	The headphone jack supports both a microphone and headphones
7	Output	SD card slot x1	The maximum read speed is 70Mbps and the maximum write speed is 90Mbps
8	Output	Micro SD card slot x1	Micro SD / SDHC (up to 128 GB)
9	Output	USB-C Female x1 FOR CHARING	MAX 100W

2 Packing List and Operation

2.1 Packing List

Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:

Main unit x1
User Manual x1Figure 2-1 Packing list

2.2 Operation

Connect the USB-C male port of this product to Macbook
Connect the three USB3.0 ports to three USB devices
Connect the HDMI port to HD display with one HDMI Cable
Connect the VGA port to HD display with one VGA Cable
Connect Gigabit Ethernet port of this product to Ethernet Router with an Ethernet cable
Connect the Stereo port to earphone
Insert Micro SD and SD/MMC cards into the card reader ports
Connect the Type C charging port, it can charge for the MacBook and support this adapter to work simultaneously

Note:

When the USB-C header of the expansion dock is connected to the device, the mouse connected to the USB 3.0 port will not work immediately, and there will be a delay of several seconds, which is a normal phenomenon.
When connecting this product to Chromebook, the VGA video signal may not appear on the screen of the VGA monitor under certain resolutions
When plugging in and out the PD Adapter, the connected USB devices will get disconnected flashily and then reconnect in a few seconds, so to prevent possible data loss or corruption, avoid disconnecting the PD Adapter from AC power while transferring data
When reading the large-capacity moving hard disk, please connect to the PD for charging.
The working temperature is about 45 C, which is a normal fever condition.
