- Materials
- Aluminium alloy
- Color
- Silver
- Dimensions
- 171 mm Ć 171 mm Ć 71 mmļ¼Including floor MATSļ¼
- Weight
- 1.9KG(Includes adapterļ¼
- power dissipation
- up to 140W
- CPU

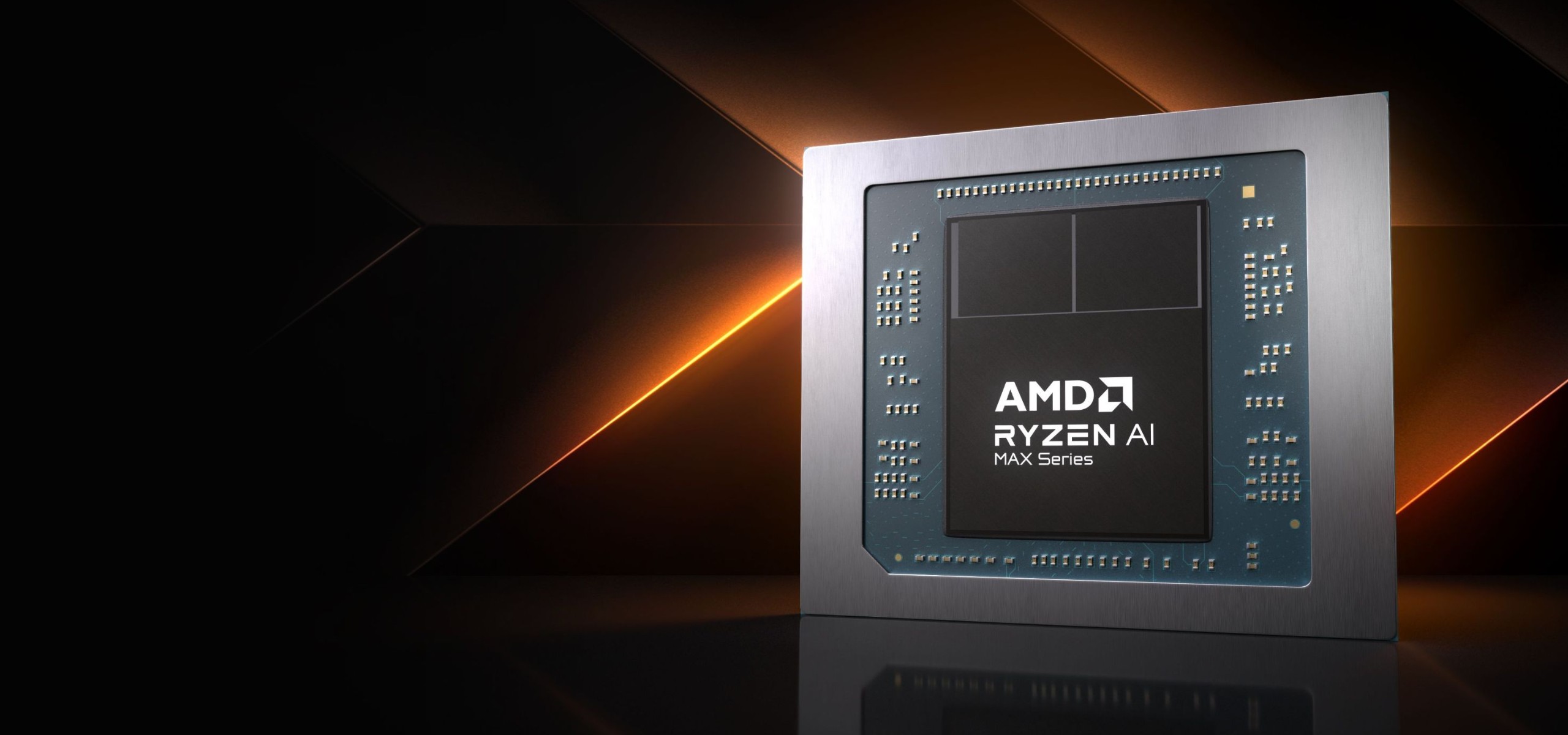

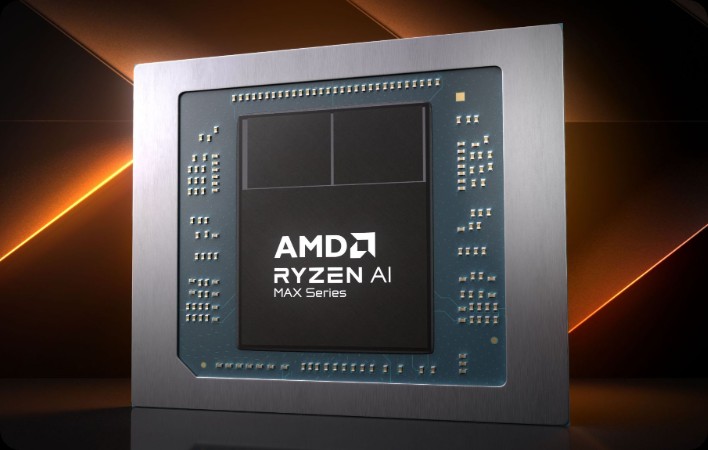

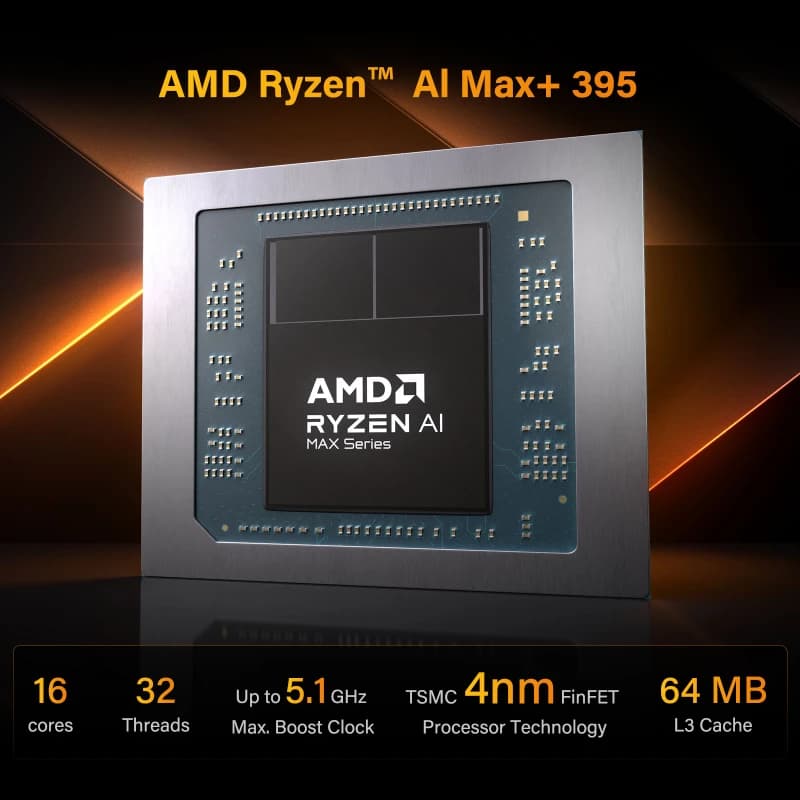

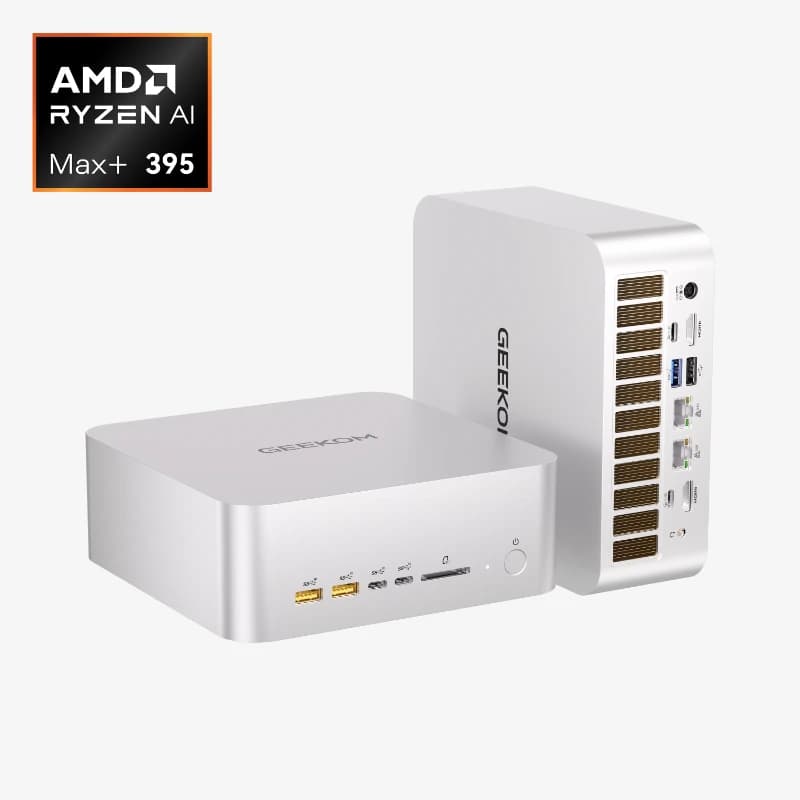

- AMD Ryzen⢠AI Max+ 395,16C/32T, 3GHz, Max 5.1GHz, cTDP 45-120W
- GPU
- Radeon 8060S Graphics (for Max+ 395), Support 4 outputs, AMD Ryzen⢠AI, NPU 50 TOPS
- Power consumption
- TDP 45-120W
- Memory
- Support 8*Onboard LPDDR5x 8000MHz, up to 128GB
- Storage
- 2 x M.2 2280 PCIe Gen4x4, supports 128GB~4TB NVMe SSD, support Raid 0 & Raid 1
- Network (LAN)

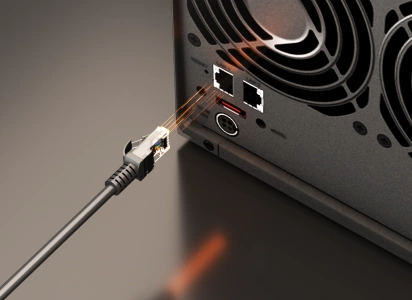

- 2x RJ-45 Ethernet 10/100/1000/2500 Mbps ļ¼LED (10/100Mbps:No light, 1000 Mbps: Orange Flashing. 2500 Mbps: Green)
- Displays
- 2 x HDMI 2.1 (FRL) up to 8K/60Hz
- WIFI
- Wi-Fi 7 802.11be, 2.4GHz/5GHz, 6GHZ
- Microphone
- 2 x Microphone
- LED
- 1 x white LED indicator

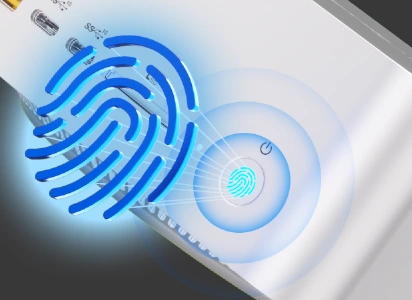

- Fingerprint button
- 1 x Fingerprint button, USB interfaceļ¼Support ESS

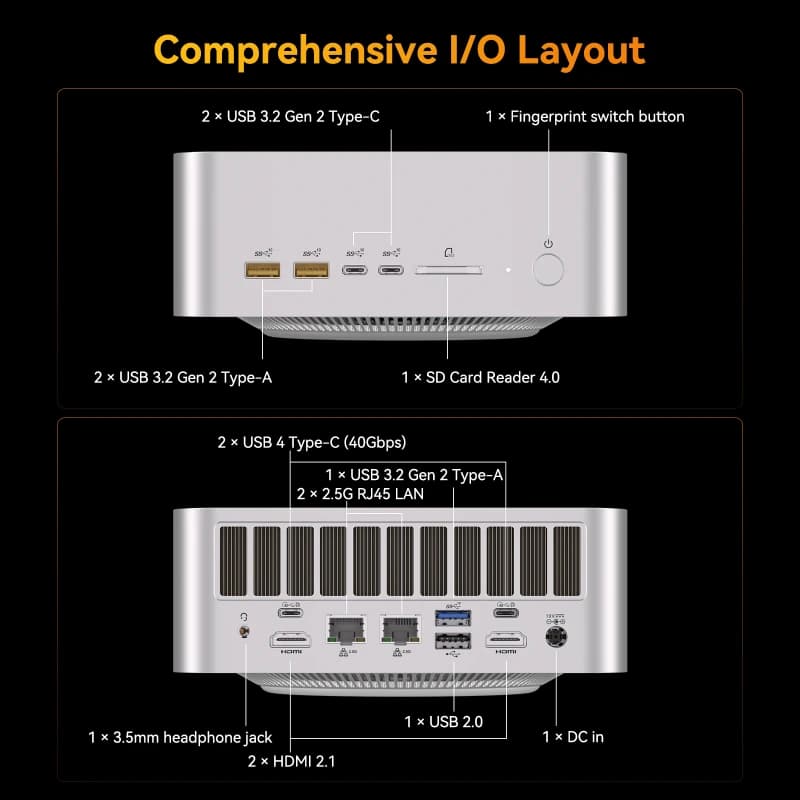

- I/O

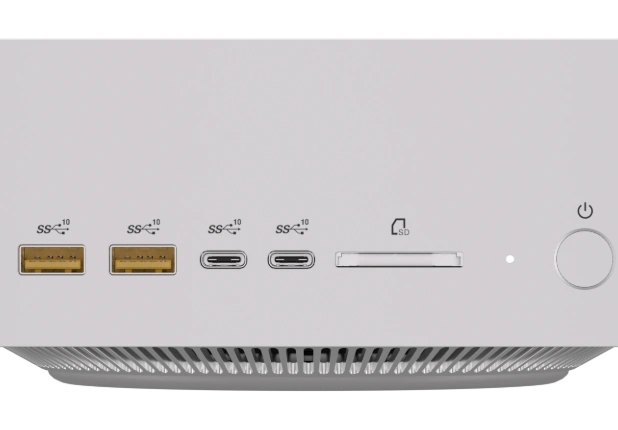

- 2 x Front USB 3.2 Gen 2 Type-A, 10Gbps (Yellow)
2 x Front USB 3.2 Gen 2 Type-C (Data only)

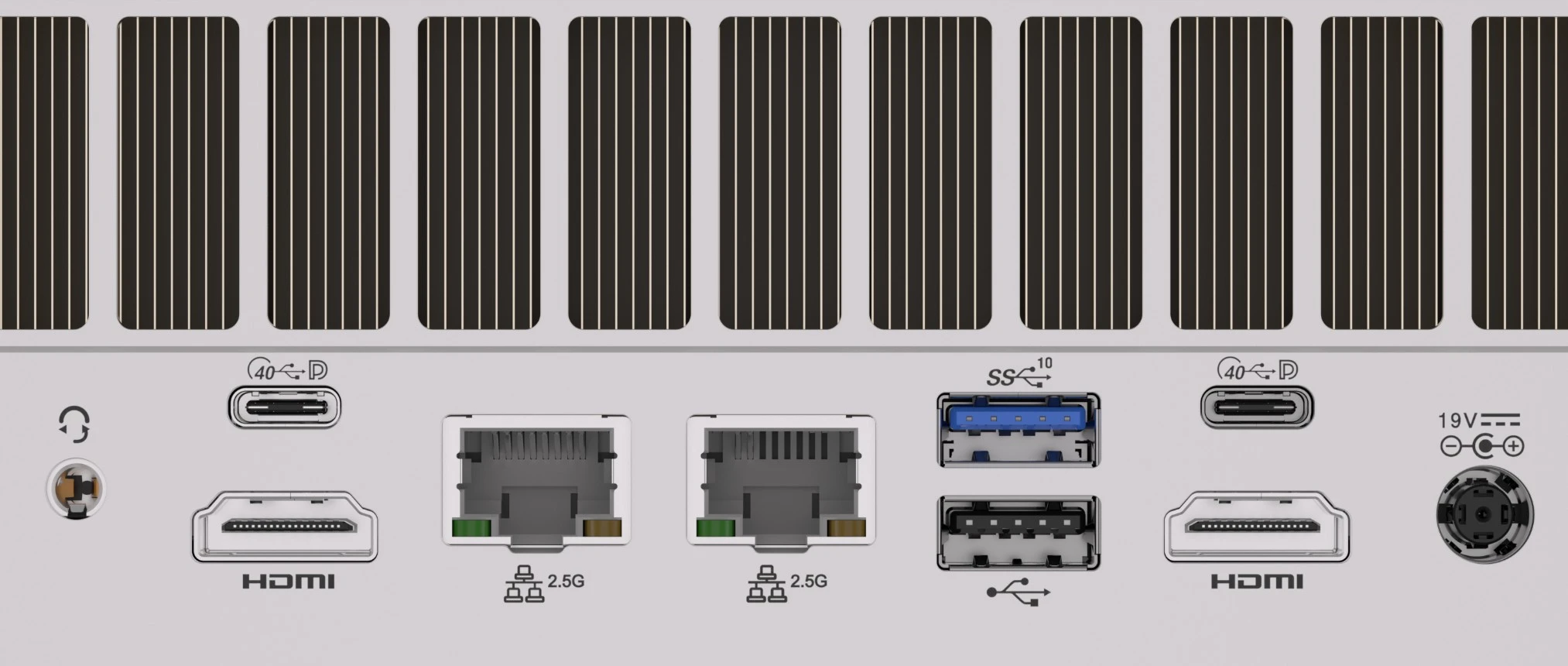

1 x Rear USB 3.2 Gen 2 Type-A (Blue Tongue)
1 x Rear USB 2.0
2 x Rear USB 4 Type-C (40Gbps), with Display Port 2.1
2 x Rear HDMI 2.1 FRL, up to 8K/60Hz
2 x Rear 2.5G RJ45 Ethernent

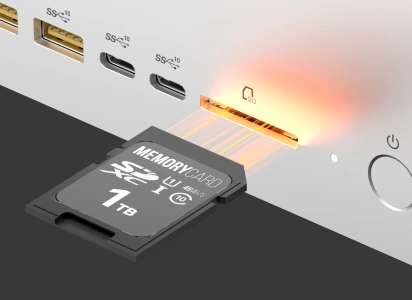

1 x Front SD Card SDXC
1 x Rear 3.5mm stereo headset jack
1 x DC in 20V
- Watchdog Timer
- 255 timer levels; setup by software
- Battery
- RTC coin battery, (1 x 2032)
- Security
- 1 x DTPM2.0
- OS Support
- Windows 10 LTSC, Windows 11, Linux
- Operating Temperature
- -0 ~ 50 °C
- Storage Temperature
- -20 ~ 70 °C
- Relative Humidity
- 95% @ 40 °C (Non-Condensing)
- Cooling method

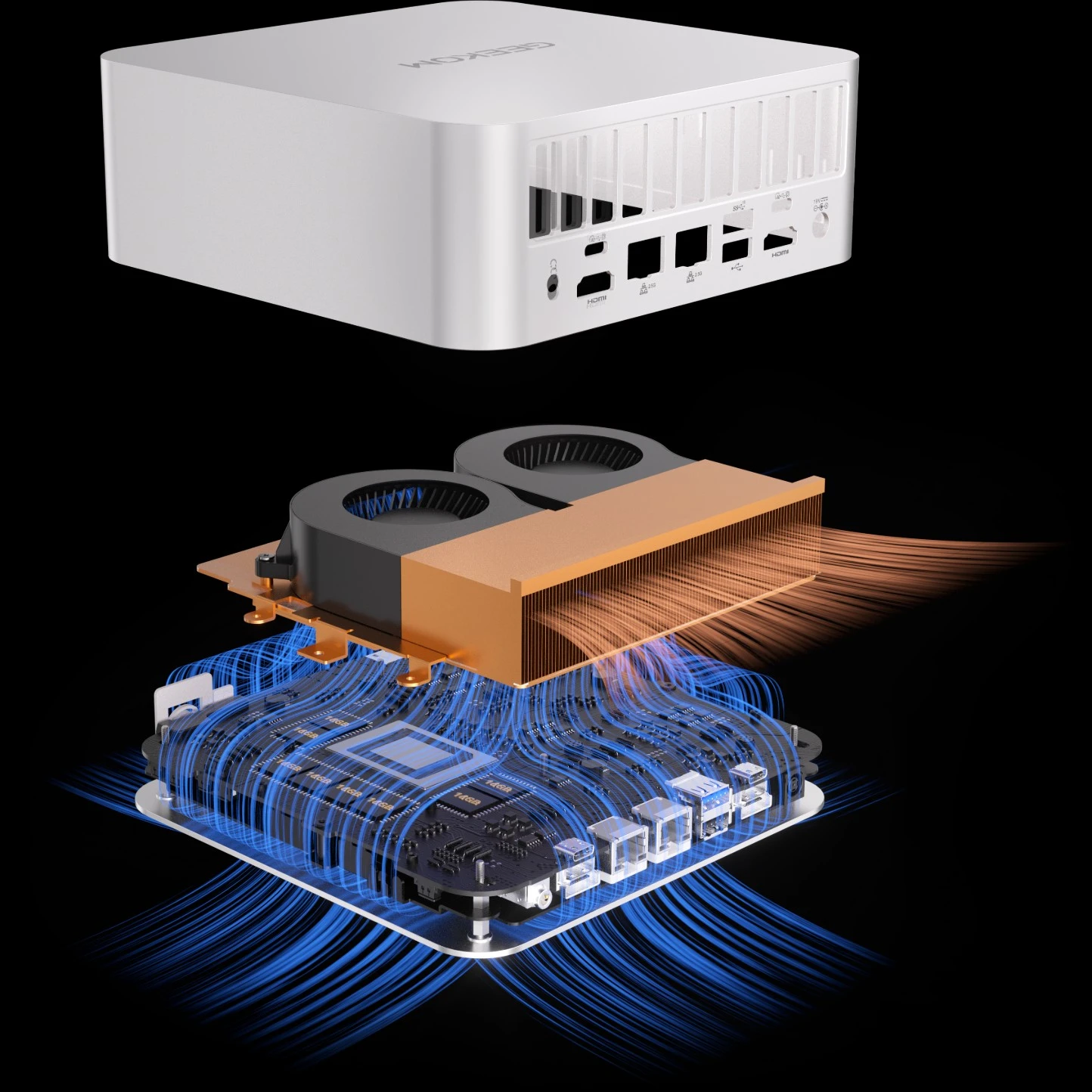

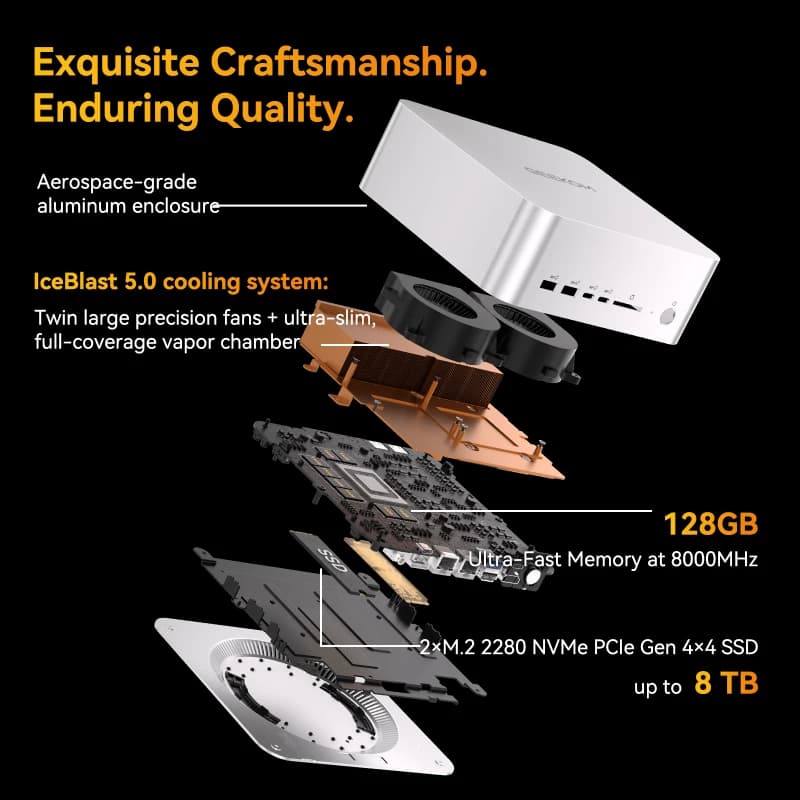

- Dual fans + VC heat dissipation
- Certification
- CE, FCC, CB, CCC, SRRC, RoHS
- Input power
- AC 100-240V ---50-60HZ 4.2Aļ¼TBD
- Output power
- 20V 16.5A power supply adapter 330W with geo-specific AC cord (IEC C5),
